SPEED CONTROLLER

The Nosram HD competition speed control is unique combination of hardware and software features was created to deliver maximum performance on the track without compromise for touring car racing. With this in mind, HD comes fully equipped to bring the best experience to the user in every racing situation.

The Nosram HD comes equipped with completely redesigned power board and logic board to unleash the full potential of the new software and to provide reliability for today’s extreme racing demands. With 8copper layers and a total thickness of 2.8mm, the Nosram HD heavy duty power board achieves minimal resistance and drops core temperatures significantly.

First time in use are Nosram’s exclusive Customized Super FETs CSF-01. To improve internal cooling further, new copper cooling plates come soldered on both PCB sides. Backed with a bulletproof 6V/6V BEC and newly selected high quality components ensure most consistent operation under extreme loads.

Finally, rounded off with pre-soldered all black 12AWG power wires, short receiver lead and astonishing new dark blue full aluminium case with aluminium pushbuttons, the new Nosram HD will completely stand out and be perfectly fitted to any car chassis.

By the time of release, Nosram continues to use its well-known effective system for fast trackside adjustments with pushbuttons, with no need to use a separate programming unit. The Nosram HD speed control series however is designed to support external programming device which is planned to be offered later on. Combined with an all new user manual concept, the Nosram HD remains effective and easy to use for everybody.

NOSRAM HD TC SPEC

NOSRAM HD OFFROAD

NOSRAM HD STOCK SPEC

The Nosram HD TC Spec comes pre-installed with the all new v4.1 software. Smoother driving feel with maximum power output and consistently strong brakes were the main focus points on this new software creation. All new brake types developed especially for the HD will match any driving style and situation on track, while the new Torque feel, Timing and Delay features are to provide the smoothest throttle control with highest top speeds at any racing track. Timing parameters in Nosram HD have been completely revised and now feature exceptional improvements in terms of power delivery. To give Stock class racers the edge, the benefit from the feel of a pure Nosram speed control is backed with the power board’s low resistance, ensuring most direct motor control with minimum losses.

INCLUDED IN THE PACKAGE

  • Nosram HD TC spec ESC
  • Installation manual & Software guide
  • NOSRAM sticker sheet
  • Hall sensor wire 100mm
  • 40x40mm double-sided tape

The Nosram HD Offroad comes pre-installed with the all new v3.1 software. This software is adapted to the new hardware and new vital features have been added to make it best possible for today´s need in Offroad racing.

New Timing parameters make the new Nosram HD Offroad even more driveable and smooth in terms of power delivery while at the same time reaching even higher top speeds at any track. On the other end it comes the Nosram specialty, 4 different brake types paired with unique Ramp feature to match all different surfaces and driving styles. To give Stock class racers the edge, the benefit from the feel of a pure Nosram speed control is backed with the power board’s low resistance, ensuring most direct motor control with minimum losses.

INCLUDED IN THE PACKAGE

  • Nosram HD offroad ESC
  • Installation manual & Software guide
  • NOSRAM sticker sheet
  • Hall sensor wire 200mm
  • 40x40mm double-sided tape

The Flow X Stock Spec comes pre-installed with the all new v5.1 software. This software is adapted to the new hardware and new vital features have been added to make it best possible for today´s need in Stock racing.

Initial Drive Feel Compensation (IDFC) has been developed especially with Stock racing in mind to maximize the comfort of Initial drive feel over the whole race. Activating IDFC will provide Initial drive increments depending on the temperature of the motor. This innovative feature will help you to match the same power feeling on throttle over the whole race. You can either select no compensation or adjust more IDFC to match the desired feeling on throttle after the motor gets hotter and battery weaker.

INCLUDED IN THE PACKAGE

  • Nosram HD Stock Spec ESC
  • Installation manual & Software guide
  • NOSRAM sticker sheet
  • Hall sensor wire 200mm
  • 40x40mm double-sided tape

NOSRAM FALCON 8

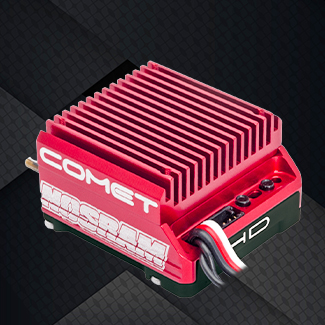

NOSRAM COMET

The Nosram HD TC Spec comes pre-installed with the all new v4.1 software. Smoother driving feel with maximum power output and consistently strong brakes were the main focus points on this new software creation. All new brake types developed especially for the HD will match any driving style and situation on track, while the new Torque feel, Timing and Delay features are to provide the smoothest throttle control with highest top speeds at any racing track. Timing parameters in Nosram HD have been completely revised and now feature exceptional improvements in terms of power delivery. To give Stock class racers the edge, the benefit from the feel of a pure Nosram speed control is backed with the power board’s low resistance, ensuring most direct motor control with minimum losses.

INCLUDED IN THE PACKAGE

  • Nosram HD TC spec ESC
  • Installation manual & Software guide
  • NOSRAM sticker sheet
  • Hall sensor wire 100mm
  • 40x40mm double-sided tape

The Nosram HD Offroad comes pre-installed with the all new v3.1 software. This software is adapted to the new hardware and new vital features have been added to make it best possible for today´s need in Offroad racing.

New Timing parameters make the new Nosram HD Offroad even more driveable and smooth in terms of power delivery while at the same time reaching even higher top speeds at any track. On the other end it comes the Nosram specialty, 4 different brake types paired with unique Ramp feature to match all different surfaces and driving styles. To give Stock class racers the edge, the benefit from the feel of a pure Nosram speed control is backed with the power board’s low resistance, ensuring most direct motor control with minimum losses.

INCLUDED IN THE PACKAGE

  • Nosram HD offroad ESC
  • Installation manual & Software guide
  • NOSRAM sticker sheet
  • Hall sensor wire 200mm
  • 40x40mm double-sided tape

FEATURES

ALL NEW POWER & LOGIC BOARD HARDWARE

  • Customized Nosram cooling plates
  • Lowest internal core temperature
  • Black super flexible WorksTeam customized power wires
  • Black short (TC spec) / black 175mm (Offroad) receiver wire
  • Selected hardware components
  • Low profile case design with improved air-flow
  • Easy solder system
  • Dust and waterproof buttons (IP68)
  • v4.1 touring car onroad software for Modified and Stock classes incl. Boost 0
    (only Nosram HD TC spec)
  • v3.1 dedicated offroad software for Modified and Stock classes incl. Boost 0
    (only Nosram HD Offroad)
  • Multi-mode power profile adjustment & new MPS4 protection system
  • Special new brakes types BDX10 and BDX20 (only Nosram HD TC spec) and 4 different brake types including BDX-0 (only Nosram HD Offroad) for the most consistent and powerful braking in every condition
  • New electronic timing algorithm for smooth and yet extreme power gains
  • Timing delay feature for smoothest throttle control
  • Optimized internal adjustments of the microcontroller parameters for faster response and consistent running
  • Optimized Protection levels with precision temperature readout
    Tested in hardest race conditions
  • 100% LRP quality approved with sophisticated functional and electrical test incl. drive simulation.

MAIN FEATURES

  • Nosram’s exclusive Customized Super FETs (CSF-01) for highest
    power output and efficiency
  • Heavy duty 2.8mm 8-layer power board for minimum resistance
    and lowest core temperatures
  • NEW v4.1 software specialized for touring car racing (only Nosram HD TC spec)
  • NEW v3.1 software specialized for Offroad racing (only Nosram HD Offroad)
  • Bulletproof 6V/6A BEC for the most reliable power output
  • Full aluminium case in exclusive state of the art design
